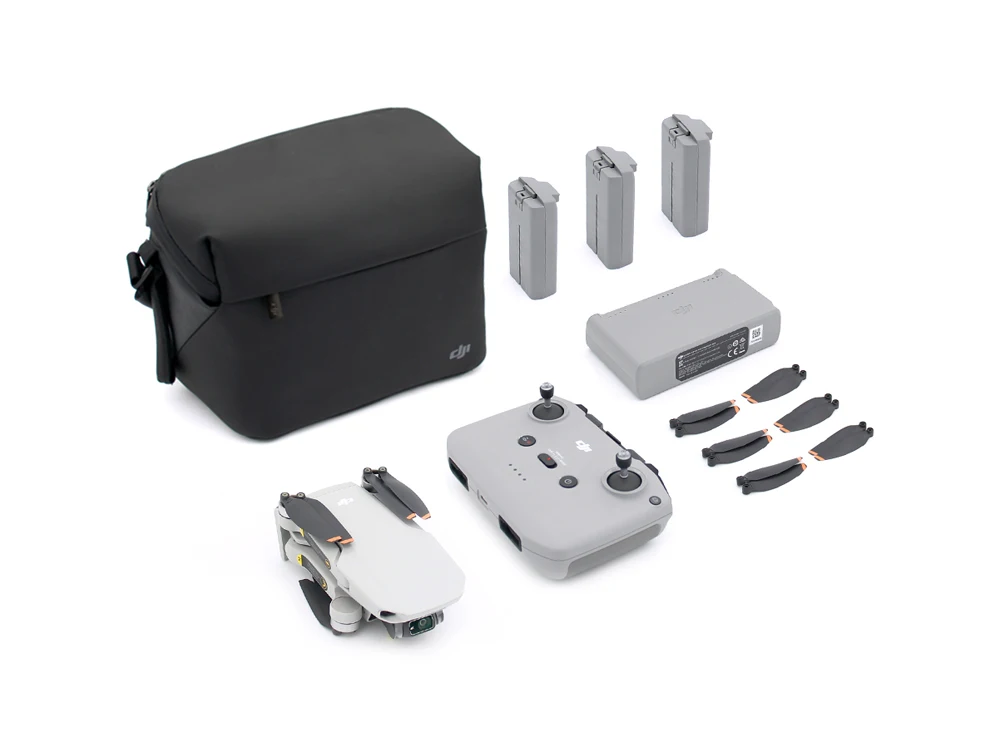

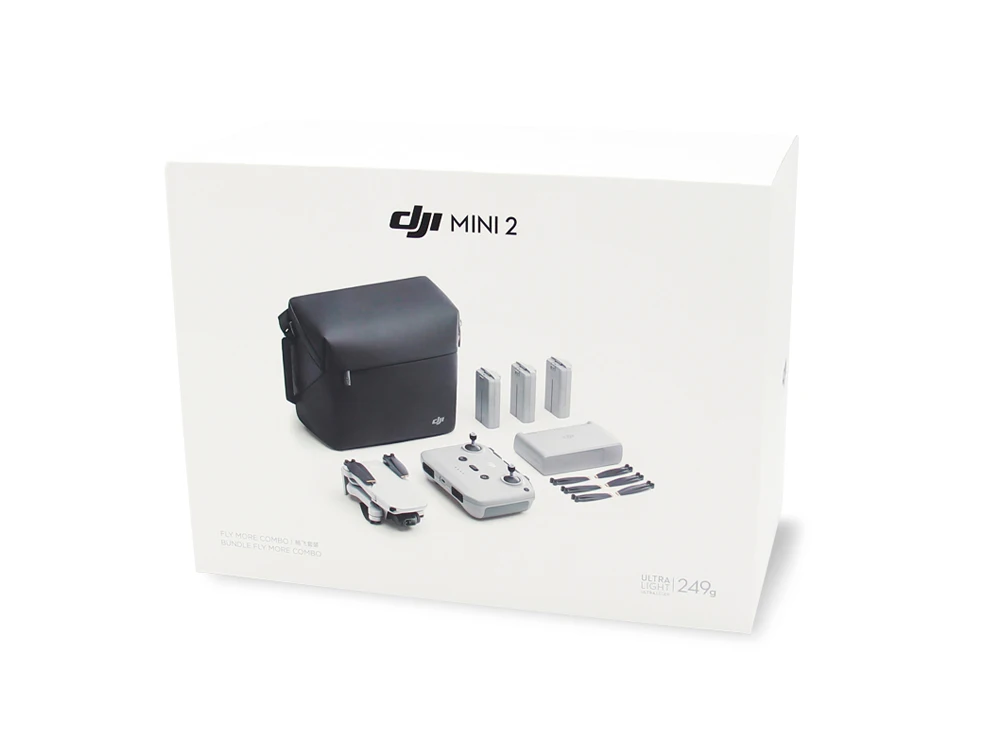

DJI Mini 2 Fly More Combo

Technical parameters

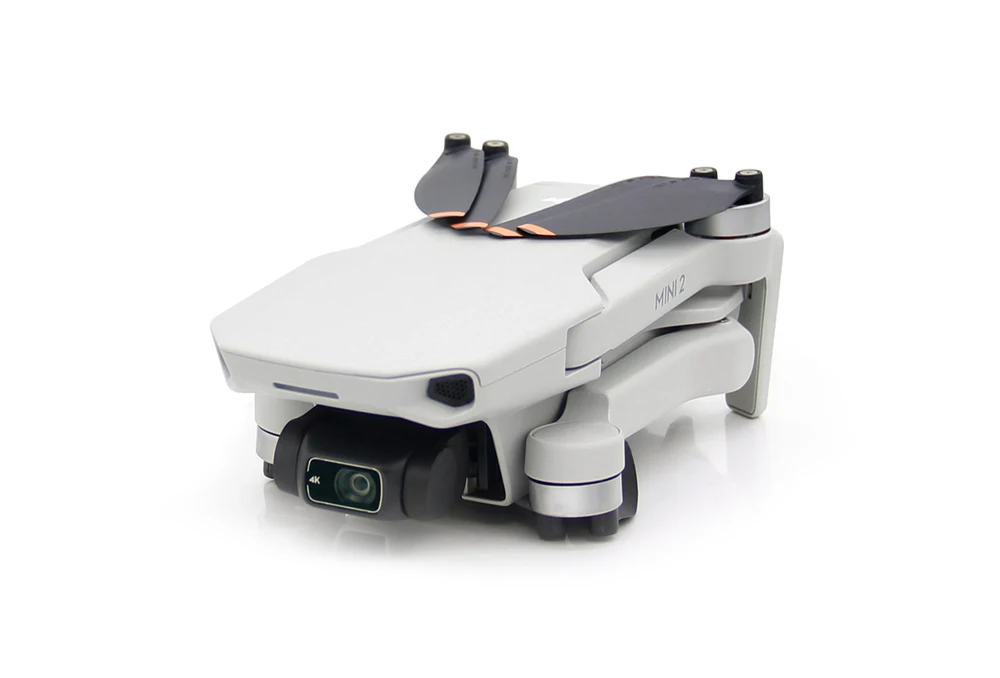

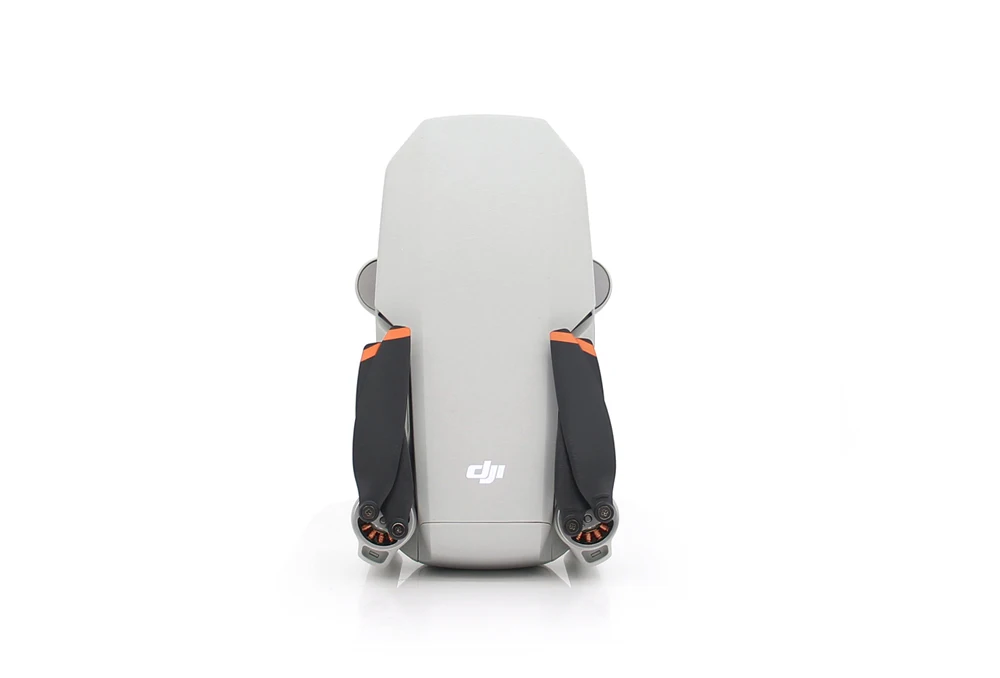

Aircraft

Takeoff Weight
< 249 g
Dimensions
Folded: 138×81×58 mm (L×W×H)
Unfolded: 159×203×56 mm (L×W×H)
Unfolded (with propellers): 245×289×56 mm (L×W×H)
Diagonal Distance
213 mm
Max Ascent Speed
5 m/s (S Mode)
3 m/s (N Mode)
2 m/s (C Mode)
Max Descent Speed
3.5 m/s (S Mode)
3 m/s (N Mode)
1.5 m/s (C Mode)
Max Speed (near sea level, no wind)
16 m/s (S Mode)
10 m/s (N Mode)
6 m/s (C Mode)
Max Service Ceiling Above Sea Level
4000 m
(2000 m when taking off with propeller guard)
Max Flight Time
31 mins (measured while flying at 4.7 m/s in windless conditions)
Max Wind Speed Resistance
8.5-10.5 m/s (Scale 5)
Max Tilt Angle
40° (S Mode)
25° (N Mode)*
25° (C Mode)*
* Up to 40° under strong winds
Max Angular Velocity (by default)*
130°/s (S Mode)
60°/s (N Mode)
30°/s (C Mode)
* Can be adjusted to 250°/s with the DJI Fly app
Operating Temperature
0° to 40°C (32° to 104°F)
Operating Frequency [2]
2.400-2.4835 GHz, 5.725-5.850 GHz
Transmitter Power (EIRP)
2.400-2.4835 GHz
FCC ≤ 26 dBm
CE ≤ 20 dBm
SRRC ≤ 20 dBm
5.725-5.850 GHz
FCC ≤ 26 dBm
CE ≤ 14 dBm
SRRC ≤ 26 dBm
Global Navigation Satellite System (GNSS)
GPS+GLONASS+GALILEO
Hovering Accuracy Range
Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)
Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal

Mechanical Range
Tilt: -110° to 35°
Roll: -35° to 35°
Pan: -20° to 20°
Controllable Range
Tilt: -90° to 0° (default setting) -90° to +20° (extended)
Stabilization
3-axis (tilt, roll, pan)
Max Control Speed (tilt)
100°/s
Angular Vibration Range
±0.01°

Charger

Input
100-240 V, 50/60 Hz, 0.5 A
Output
12V 1.5 A / 9V 2A / 5V 3A
Rated Power
18 W

Intelligent Flight Battery

Battery Capacity
2250 mAh
Voltage
7.7 V
Charging Voltage Limit
8.8 V
Battery Type
LiPo 2S
Energy
17.32 Wh
Weight
86.2 g
Charging Temperature
5° to 40°C (41° to 104°F)
Max Charging Power
29 W

App

Name
DJI Fly
Required Operating System
iOS v10.0 or laterAndroid v6.0 or later
